Infrared Technology and Switchboards – Why you need them

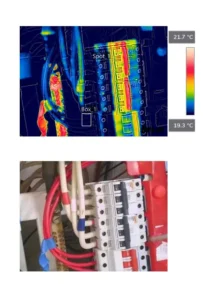

THERMAL IMAGING HIGHLIGHTS THE ISSUES YOU CAN’T SEE

Hidden faults can be detected early with a noninvasive safety check – using a thermal camera to identify concerns within a switchboard.

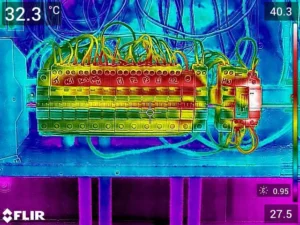

HOW DOES A THERMAL CAMERA WORK?

By utilising infrared technology we are able to see what can’t be seen with the naked eye. Specifically, our cameras detect temperature anomalies that are often referred to as “hot spots” in the electrical system. These “hot spots” can become electrical faults, which once identified, can be rectified before imminent or future breakdowns and/or catastrophic failures occur.

HOW OFTEN SHOULD AN ELECTRICAL THERMAL SCAN BE DONE?

Thermal imaging of electrical systems is an excellent proactive strategy for mitigating costly breakdowns and catastrophic failures. Whilst there is no standard on times frames for inspection we recommend every 6 months for industrial, commercial and high rise applications and 12 months for domestic applications. Commercial building insurances

WHAT ARE THE LIMITATIONS TO A THERMAL SCAN?

Infrared energy does not pass through glass, plastic, metallic doors and escutcheon panels and for accurate results should be removed to expose electrical terminals at the time of testing. We will remove these panels when safe to do so however in some circumstances this will not be possible. In other instances, a lock is fitted to main electrical isolators preventing the switchboard panel from opening without disconnecting power to switchboard. We will not shut down power to the site for testing without being advised to do so.

WHAT RESULTS AND RECOMMENDATIONS CAN I EXPECT FROM THE REPORT?

Our reports will provide normal and infrared images, temperature differentials of measured areas, priority ratings and recommended actions based on our findings of the inspected components. Our results and recommendations are based on the Australian Standards AS/NZS 3000-2007 Section 3 and AS/NZS 3439.1 2002 – Clause 7.3 & 8.2.1 (Operating /Limiting Temperatures). It is strongly advised to action the repair works based on the time frames provided in our report.

ARE ALL ELECTRICIANS LICENCED TO DO A THERMAL SCAN?

Only electricians who have been trained in the use of the thermal camera and reading of the results can provide an accredited compliance report suitable for insurance purposes. Our team are certified and have over 5 years experience in thermal scanning, plus over 20 years in commercial and body corporate switchboards. Our services always include a summary and recommendations as well as a compliance report for your records.

So, Why Trust Us?

We’re a local Brisbane team with years of experience installing, repairing, and advising on quality electrical systems. We don’t upsell you on unnecessary gear, but we will always recommend reliable, trusted brands that we’d use in our own homes. At the end of the day, we strive to provide the best value, not just the lowest price, and we’ll stand by that.

Here’s what you really get when you invest in quality electrical gear we recommend for your home:

  • Longevity: Less replacing. Less hassle. More Savings!
  • Safety: Peace of mind knowing the products are built to Australian standards.
  • Reliable Connectivity: From smart lights to security alarms, easy electronic integration matters.
  • Customer Support: Need help? You’ll actually get someone on the phone you can talk with, not yell at.
  • Proper Warranties: Real, beneficial coverage from long-standing, trusted manufacturers.

Read more About Us and our Qualified Team Here

Choose Fully Wired to be your electrical safety partner for Full Peace of Mind Today

Ready to get switched on? Give Fully Wired a buzz. We’ll help you power your place for a fair price with quality electrical products that stand the test of time.

Contact our team on 1300 385 599 or complete our contact form to get a free quote.
